COSMOFEN DUO

THE PROVEN SPECIALIST

2-Part PUR Corner Angle Adhesive

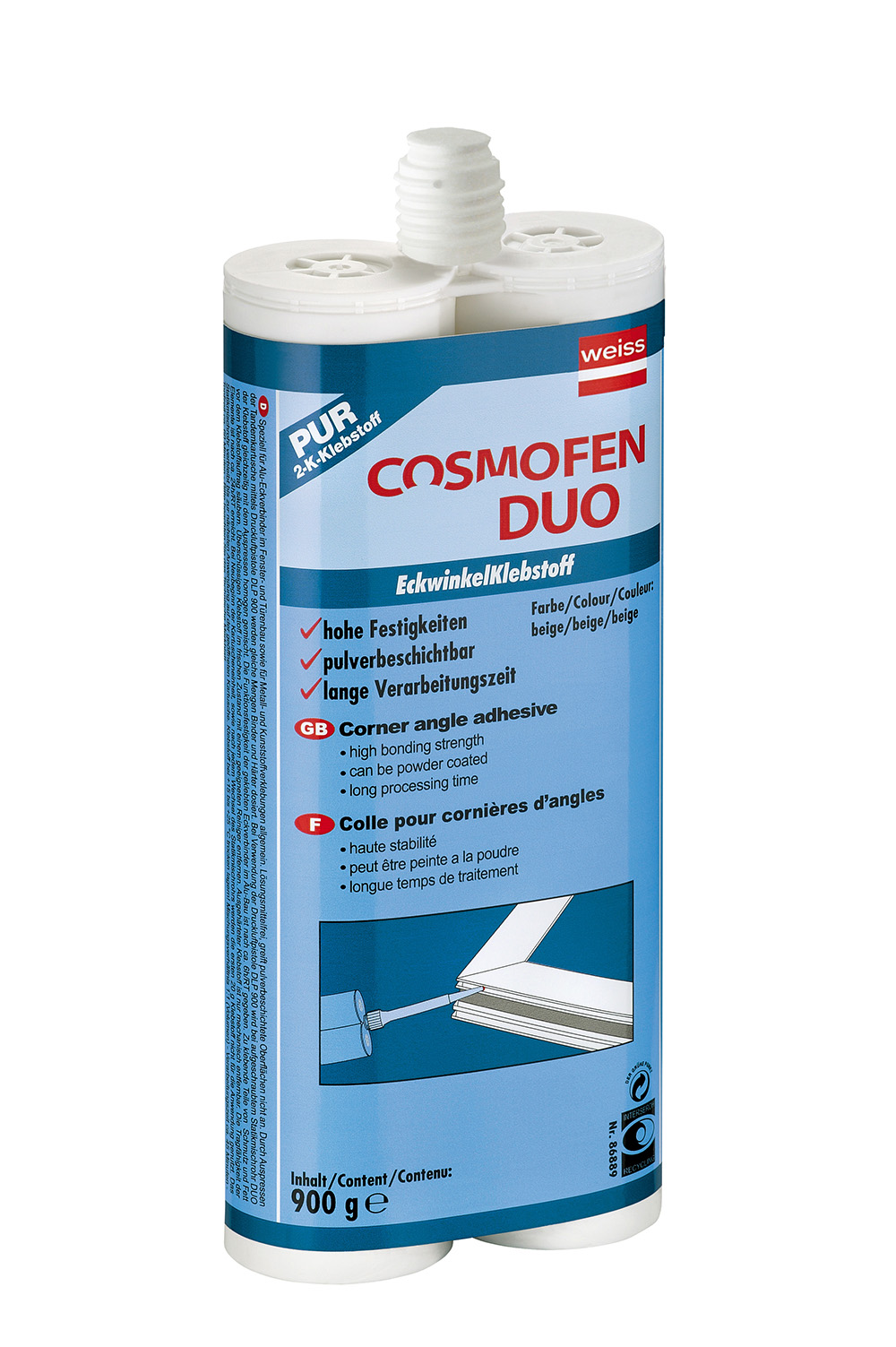

COSMOFEN DUO (COSMO® PU-200.280) is a two-component polyurethane reaction adhesive developed for structural, force-locking bonding applications. It is particularly suitable for bonding corner joints in aluminium window and door manufacturing using both classic and injection bonding methods.

The solvent-free, thixotropic formulation provides a tough-hard adhesive joint with good resistance to weathering. With a processing time of approximately 30 minutes at +20 °C and a tensile shear strength of approximately 18 N/mm² on aluminium, COSMOFEN DUO is suitable for demanding bonding applications.

The adhesive can be processed easily from a tandem cartridge with static mixer and is also suitable for bonding different material combinations, including aluminium, HPL and GRP. After reaching its final strength, the adhesive joint can also be subjected to subsequent powder coating.

APPLICATION EXAMPLES

• Corner joint bonding in aluminium window and door manufacturing

• Suitable for classic corner bonding and injection bonding methods

• Structural, force-locking bonding of different material combinations, e.g. in vehicle body manufacturing

• Bonding of aluminium, HPL, GRP and other suitable materials

• Joint restoration of gypsum fibre boards

SPECIAL CHARACTERISTICS

• Tough-hard adhesive joint

• Solvent-free

• Thixotropic, non-drip formulation

• Good resistance to weathering

• Can be overcoated with many paint systems

• Suitable for subsequent powder coating after reaching final strength

• Achieves durability class D4 according to EN 204 when bonding wood

• Easy application from tandem cartridges with static mixer

CERTIFICATES & TEST REPORTS

ift Rosenheim

COSMOFEN DUO has been tested by ift Rosenheim in connection with aluminium window systems and bonded frame corners.

Tests include:

• Operating forces, continuous functioning, reveal and hinge obstacle tests

• Air permeability, resistance to wind load and driving rain resistance

• Operating forces and mechanical loads

• Impact resistance

• Tensile strength of bonded aluminium frame corners at different temperatures and after various storage conditions

Verification / Test Reports:

• 16-004244-PR02 (NW-A01-03-de-01)

• 16-004244-PR01 (NW-A01-02-de-02)

• 16-004244-PR07 (NW-A01-03-de-02)

• 16-004244-PR03 (NW-A01-03-de-01)

• Test Report No. 50924109/1

Sentinel Holding Institut (SHI)

Sustainability-tested product in accordance with common building certification standards.

SHI Product Pass No.: 2165-10-1005

French VOC Emission Classification

French VOC-Emission class A+
